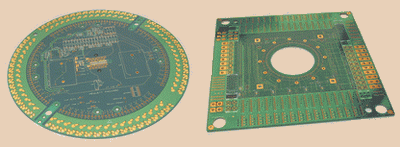

We have done many of these DUT test boards for chip test equipment. These boards have the challenge of working with schematics that do not provide net lists. They also have a host of mechanical criteria. In order to achieve success with these boards the layout engineer must be organized and methodical throughout the whole process.
